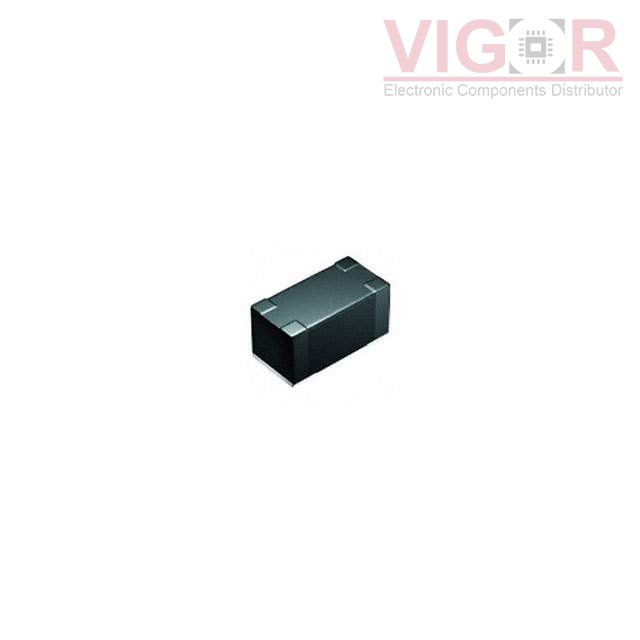

BRHL2518T2R2M

Part No :: BRHL2518T2R2M

Manufacturer: TAIYO YUDEN

VIGOR # :: 1636663

Description: FIXED IND 2.2UH 1A 149.5 MOHM

Catalog: Fixed Inductors

DataSheet: BRHL2518T2R2M PDF

Country of origin: -

Date code: -

BRHL2518T2R2M Specifications

Type	Description
Series:	BR, HL Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.5A
Shielding:	Unshielded
DC Resistance (DCR):	149.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	300MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1007 (2518 Metric)
Supplier Device Package:	1007 (2518 Metric)
Size / Dimension:	0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max):	0.059" (1.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3354

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.31~~	~~$0.31~~
2000	~~USD 0,12~~	~~$248.40~~

Current price of BRHL2518T2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

5258-RC

FIXED IND 1MH 1A 550 MOHM TH

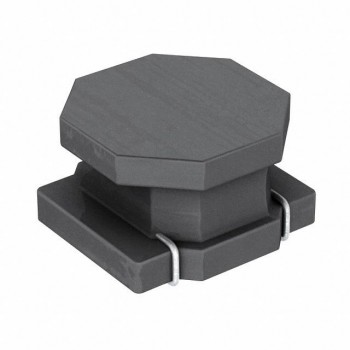

MDKK1616T3R3MM

FIXED IND 3.3UH 650MA 515 MOHM

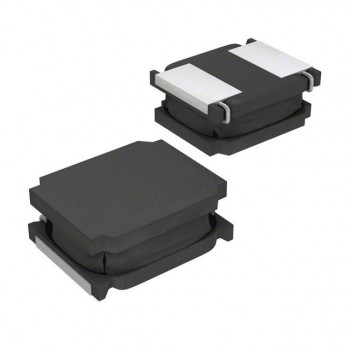

TYS252010L6R8M-10
