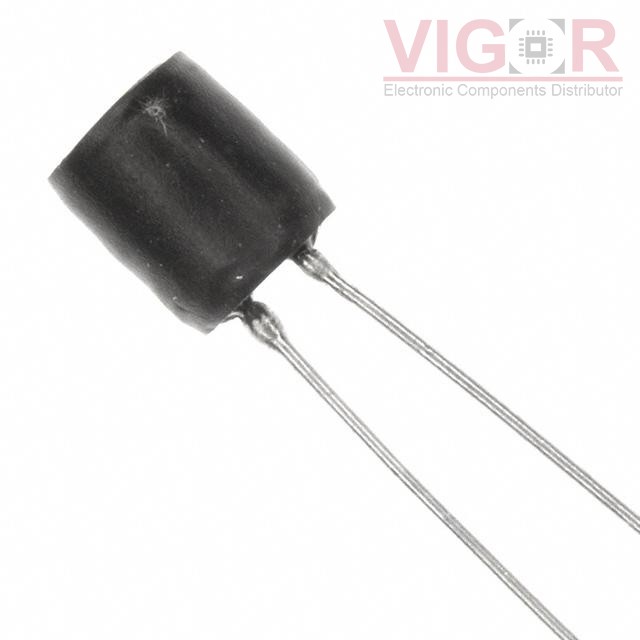

22R105C

Part No :: 22R105C

Manufacturer: Murata Power Solutions

Description: FIXED IND 1MH 170MA 3.63 OHM TH

Catalog: Fixed Inductors

DataSheet: 22R105C PDF

Availability: 0 pieces

Current price of 22R105C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

22R105C Specifications

Type	Description
Series:	2200R
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	1 mH
Tolerance:	±10%
Current Rating (Amps):	170 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.63Ohm Max
Q @ Freq:	120 @ 100kHz
Frequency - Self Resonant:	2.1MHz
Ratings:	-
Operating Temperature:	-25°C ~ 70°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.256" Dia (6.50mm)
Height - Seated (Max):	0.413" (10.50mm)
