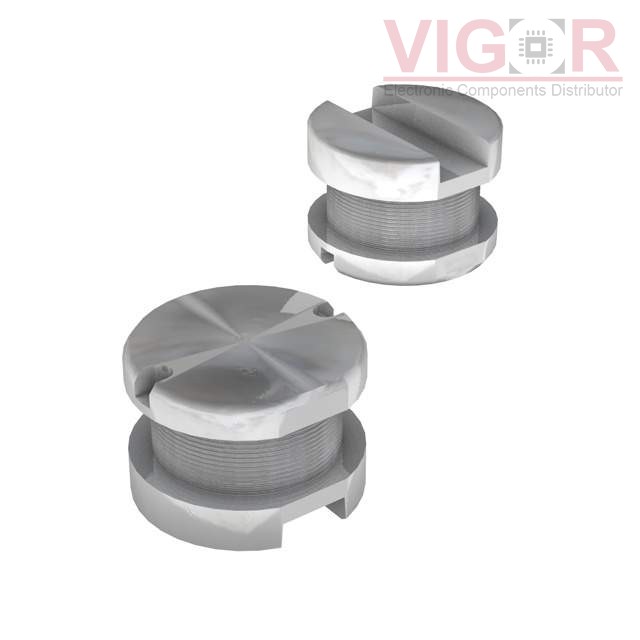

SDR0403-821KL

Part No :: SDR0403-821KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 820UH 100MA 12 OHM SMD

Catalog: Fixed Inductors

DataSheet: SDR0403-821KL PDF

Availability: 3150 pieces

Current price of SDR0403-821KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR0403-821KL Specifications

Type	Description
Series:	SDR0403
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	820 µH
Tolerance:	±10%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	150mA
Shielding:	Unshielded
DC Resistance (DCR):	12Ohm Max
Q @ Freq:	38 @ 796kHz
Frequency - Self Resonant:	2.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max):	0.138" (3.50mm)

Please confirm the specifications of the products when ordering.
