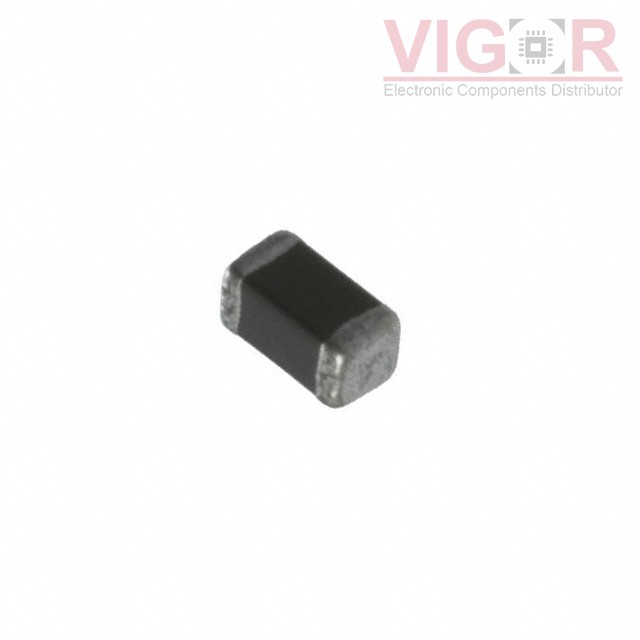

ELJ-RF56NJFB

Part No :: ELJ-RF56NJFB

Manufacturer: Panasonic

Description: FIXED IND 56NH 130MA 2.5 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-RF56NJFB PDF

Availability: 12224 pieces

Current price of ELJ-RF56NJFB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELJ-RF56NJFB Specifications

Type	Description
Series:	RF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Non-Magnetic
Inductance:	56 nH
Tolerance:	±5%
Current Rating (Amps):	130 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.5Ohm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	1.5GHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)
