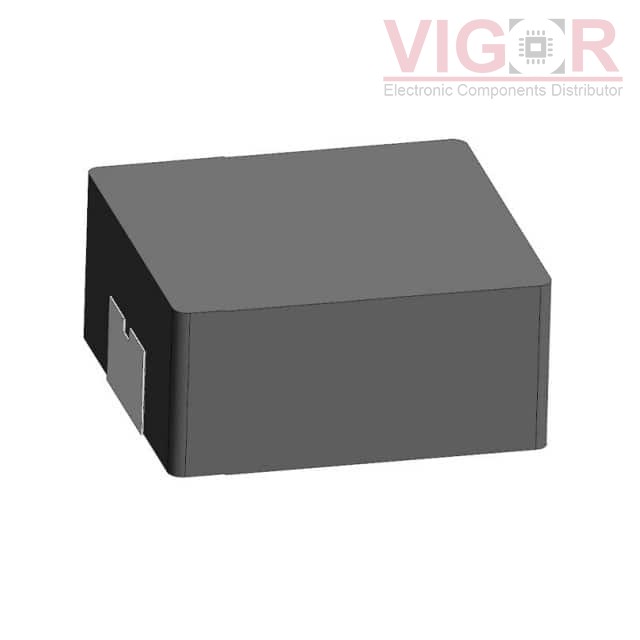

AMPLA1306S-R15MT

Image is for reference,
please contact us to get the real picture

Part No :: AMPLA1306S-R15MT

Manufacturer: Abracon

Description: FIXED IND 150NH 55A 0.6 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AMPLA1306S-R15MT PDF

Availability: 0 pieces

Unit Price: ~~$1.24196~~

Current price of AMPLA1306S-R15MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AMPLA1306S-R15MT Specifications

Type	Description
Series:	AMPLA1306S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Carbonyl Powder
Inductance:	150 nH
Tolerance:	±20%
Current Rating (Amps):	55 A
Current - Saturation (Isat):	118A
Shielding:	Shielded
DC Resistance (DCR):	0.6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max):	0.256" (6.50mm)

Please confirm the specifications of the products when ordering.
