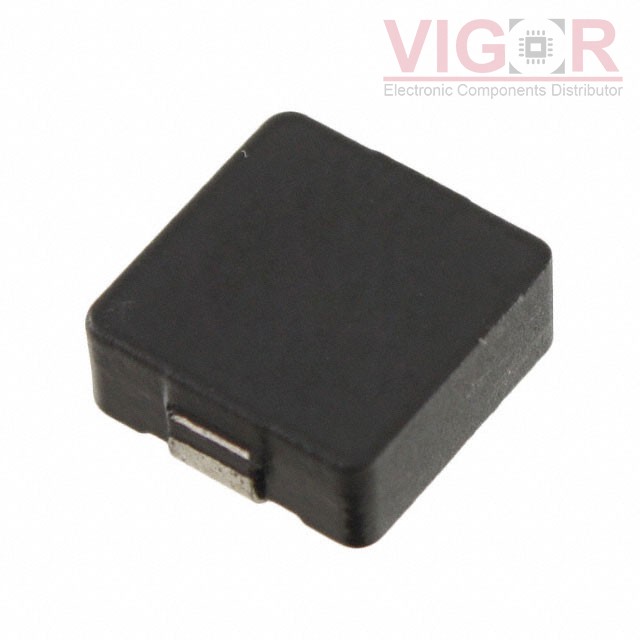

HCM1305-R68-R

Part No :: HCM1305-R68-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 680NH 34A 1.33 MOHM

Catalog: Fixed Inductors

DataSheet: HCM1305-R68-R PDF

Availability: 382 pieces

Current price of HCM1305-R68-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCM1305-R68-R Specifications

Type	Description
Series:	HCM1305
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	34 A
Current - Saturation (Isat):	54A
Shielding:	Shielded
DC Resistance (DCR):	1.33mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
