SP1812R-223K

Product image
Product thumb
Part No :

SP1812R-223K

Manufacturer
API Delevan
VIGOR # :

1639125

Description
FIXED IND 22UH 509MA 750 MOHM
Catalog
Fixed Inductors
DataSheet
SP1812R-223K PDF
Country of origin
-
Date code
-
ads
SP1812R-223K Specifications
Type Description
Series:SP1812R
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):509 mA
Current - Saturation (Isat):438mA
Shielding:Shielded
DC Resistance (DCR):750mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 29 - Feb 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.61 $1.61
1000 $1.46 $1 460.10

Current price of SP1812R-223K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
MDWK4040T2R2MMV

MDWK4040T2R2MMV

FIXED IND 2.2UH 3.5A 54MOHM SMD

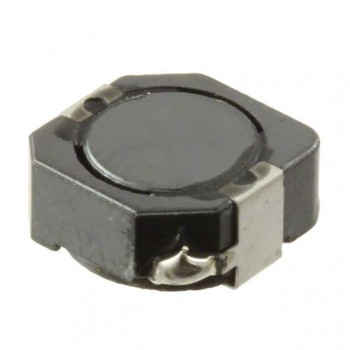

CDRH105RNP-1R5NC
