LBM2016T470J

Part No :: LBM2016T470J

Manufacturer: TAIYO YUDEN

VIGOR # :: 1639542

Description: FIXED IND 47UH 115MA 4.1 OHM SMD

Catalog: Fixed Inductors

DataSheet: LBM2016T470J PDF

Country of origin: -

Date code: -

LBM2016T470J Specifications

Type	Description
Series:	LB, M Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	47 µH
Tolerance:	±5%
Current Rating (Amps):	115 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	4.1Ohm
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806 (2016 Metric)
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.071" (1.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2061

Shipped from

HK warehouse

Expected Shipping Date

Nov 03 - Nov 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1800~~	~~$0.18~~
2000	~~USD 0,08~~	~~$155.40~~
4000	~~$0.0666~~	~~$266.40~~
6000	~~$0.0629~~	~~$377.40~~
10000	~~$0.0592~~	~~$592.00~~
50000	~~$0.0555~~	~~$2 775.00~~
100000	~~$0.0536~~	~~$5 365.00~~

Current price of LBM2016T470J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

PG1083.503NLT

FIXED IND 50UH 7.4A 32.6 MOHM

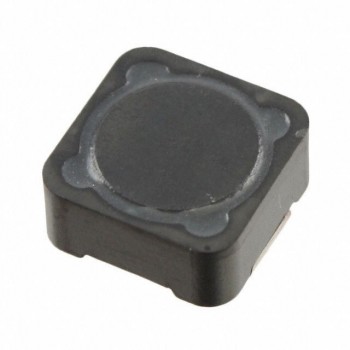

DR125-102-R

FIXED IND 1MH 570MA 1.69 OHM SMD

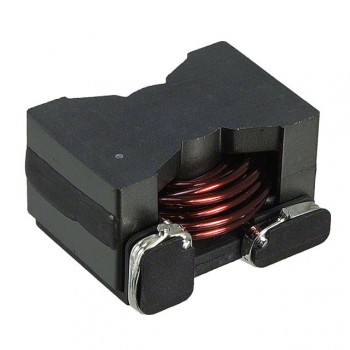

PA2050.782NL
