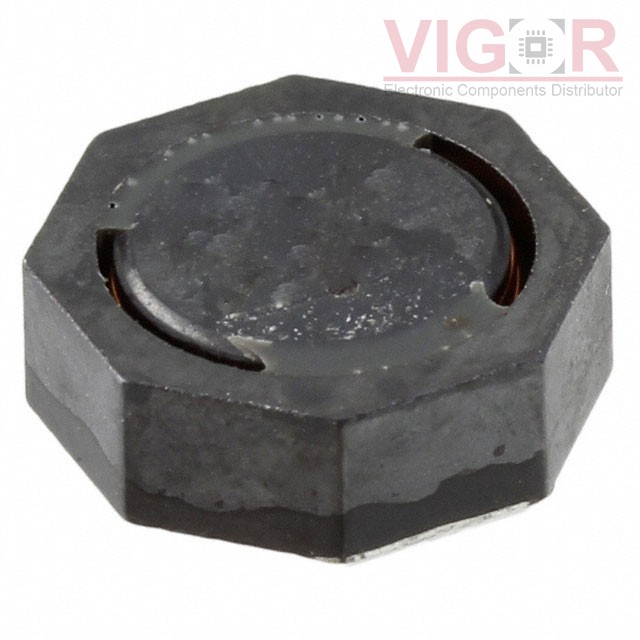

PM104SH-220-RC

Part No :: PM104SH-220-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1639875

Description: FIXED IND 22UH 2.2A 55.8MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM104SH-220-RC PDF

Country of origin: -

Date code: -

PM104SH-220-RC Specifications

Type	Description
Series:	PM104SH
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±30%
Current Rating (Amps):	2.2 A
Current - Saturation (Isat):	2.3A
Shielding:	Shielded
DC Resistance (DCR):	55.8mOhm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.161" (4.10mm)
