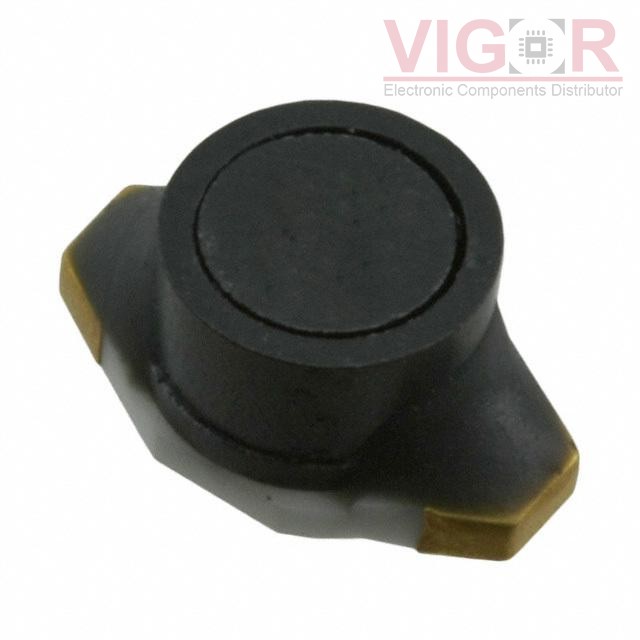

SRR6603-220ML

Part No :: SRR6603-220ML

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 700MA 110MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRR6603-220ML PDF

Availability: 0 pieces

Current price of SRR6603-220ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRR6603-220ML Specifications

Type	Description
Series:	SRR6603
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	300mA
Shielding:	Shielded
DC Resistance (DCR):	110mOhm Max
Q @ Freq:	40 @ 100kHz
Frequency - Self Resonant:	25MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.260" L x 0.173" W (6.60mm x 4.40mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
