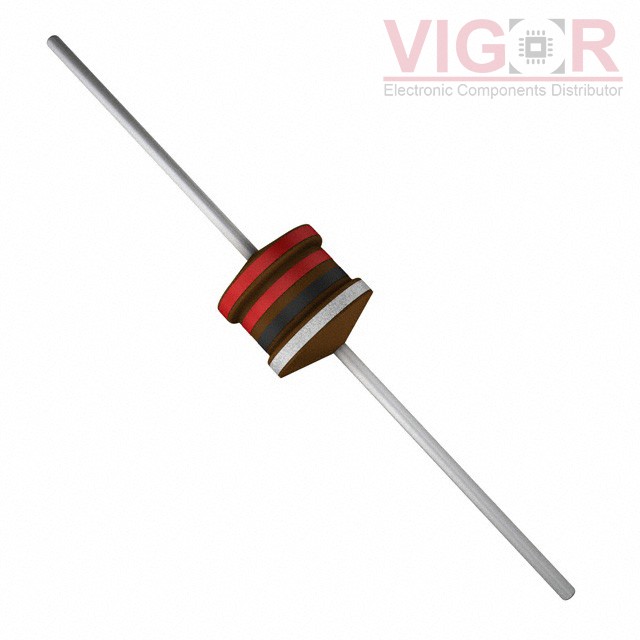

B78108E1223K000

Part No :: B78108E1223K000

Manufacturer: TDK EPCOS

Description: FIXED IND 22UH 1.3A 350 MOHM TH

Catalog: Fixed Inductors

DataSheet: B78108E1223K000 PDF

Availability: 2589 pieces

Unit Price: ~~$0.44000~~

Current price of B78108E1223K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B78108E1223K000 Specifications

Type	Description
Series:	BC+
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	1.3 A
Current - Saturation (Isat):	1.25A
Shielding:	Unshielded
DC Resistance (DCR):	350mOhm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max):	-
