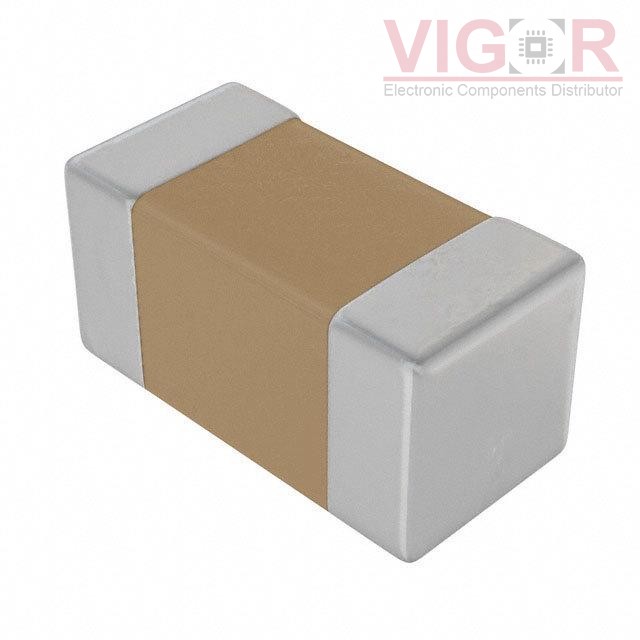

L0603B220MDWFT

Part No :: L0603B220MDWFT

Manufacturer: KEMET

Description: FIXED IND 22UH 230MA 1 OHM SMD

Catalog: Fixed Inductors

DataSheet: L0603B220MDWFT PDF

Availability: 887 pieces

Current price of L0603B220MDWFT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L0603B220MDWFT Specifications

Type	Description
Series:	L-DWF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	230 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1Ohm
Q @ Freq:	-
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.039" (1.00mm)
