UP3B-1R0-R

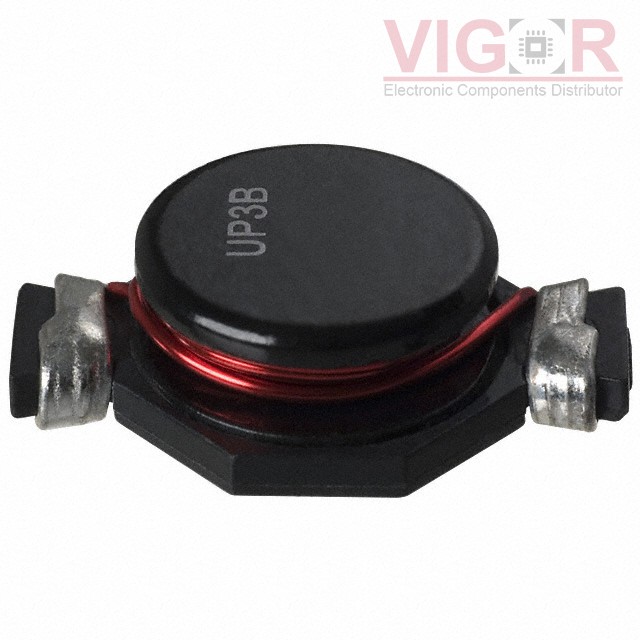

Image is for reference,
please contact us to get the real picture

Part No :: UP3B-1R0-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 1UH 12.5A 3.4 MOHM SMD

Catalog: Fixed Inductors

DataSheet: UP3B-1R0-R PDF

Availability: 0 pieces

Unit Price: ~~$1.34280~~

Current price of UP3B-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UP3B-1R0-R Specifications

Type	Description
Series:	UNI-PAC™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	12.5 A
Current - Saturation (Isat):	15.3A
Shielding:	Unshielded
DC Resistance (DCR):	3.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.760" L x 0.520" W (19.30mm x 13.21mm)
Height - Seated (Max):	0.268" (6.80mm)
