MLJ1005WR56JT000

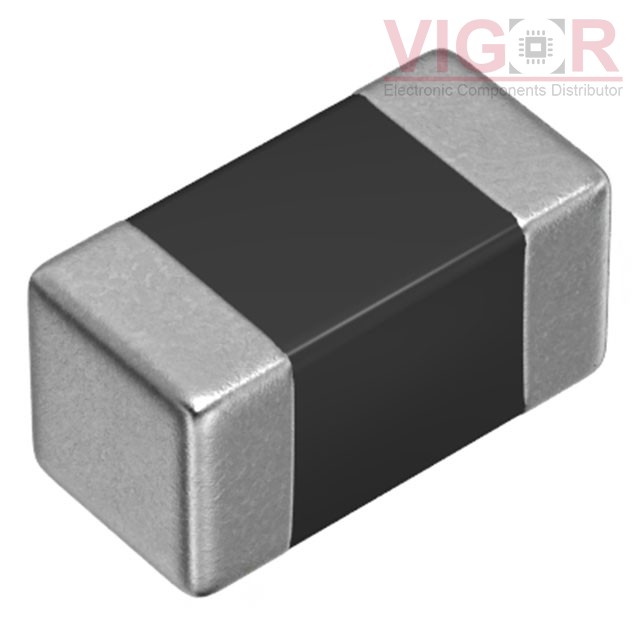

Image is for reference,
please contact us to get the real picture

Part No :: MLJ1005WR56JT000

Manufacturer: TDK Corporation

Description: FIXED IND 560NH 250MA 1.4 OHM

Catalog: Fixed Inductors

DataSheet: MLJ1005WR56JT000 PDF

Availability: 11772 pieces

Unit Price: ~~$0.31000~~

Current price of MLJ1005WR56JT000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MLJ1005WR56JT000 Specifications

Type	Description
Series:	MLJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±5%
Current Rating (Amps):	250 mA
Current - Saturation (Isat):	200mA
Shielding:	Shielded
DC Resistance (DCR):	1.4Ohm Max
Q @ Freq:	15 @ 25MHz
Frequency - Self Resonant:	170MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)
