ELJ-FCR56KF

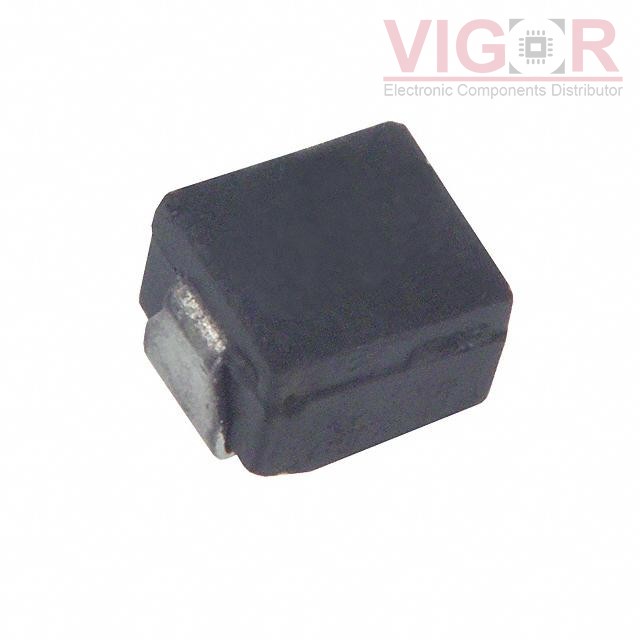

Product image
Product thumb
Part No :

ELJ-FCR56KF

Manufacturer
Panasonic
VIGOR # :

1641927

Description
FIXED IND 560NH 150MA 1.1 OHM
Catalog
Fixed Inductors
DataSheet
ELJ-FCR56KF PDF
Country of origin
-
Date code
-
ads
ELJ-FCR56KF Specifications
Type Description
Series:FC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.1Ohm Max
Q @ Freq:25 @ 25.2MHz
Frequency - Self Resonant:155MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.071" (1.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 94
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.2400 $0.24

Current price of ELJ-FCR56KF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
