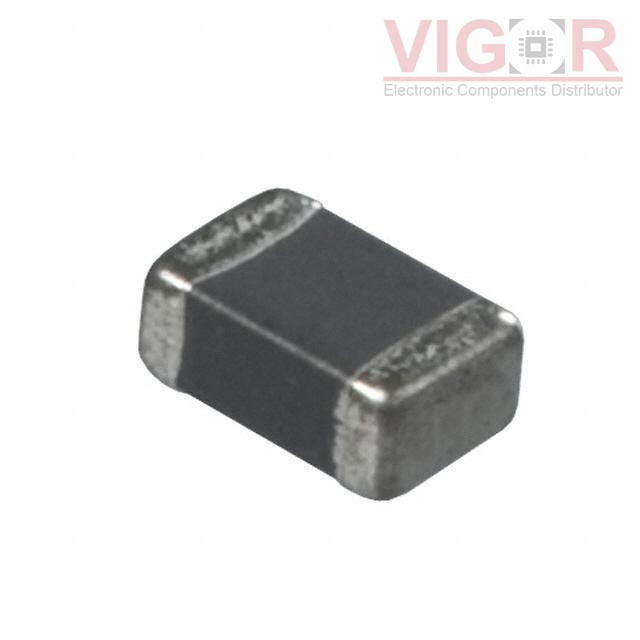

LQM21FN4R7M70L

Part No :: LQM21FN4R7M70L

Manufacturer: TOKO / Murata

VIGOR # :: 1641961

Description: FIXED IND 4.7UH 120MA 455 MOHM

Catalog: Fixed Inductors

DataSheet: LQM21FN4R7M70L PDF

Country of origin: -

Date code: -

LQM21FN4R7M70L Specifications

Type	Description
Series:	LQM21
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	4.7 µH
Tolerance:	±20%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	120mA
Shielding:	Shielded
DC Resistance (DCR):	455mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	25MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.041" (1.05mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 13609

Shipped from

HK warehouse

Expected Shipping Date

May 21 - May 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.2500~~	~~$0.25~~
3000	~~$0.0564~~	~~$169.32~~
6000	~~$0.0533~~	~~$319.80~~
15000	~~$0.0502~~	~~$752.55~~
30000	~~$0.0486~~	~~$1 458.00~~
75000	~~$0.0470~~	~~$3 527.25~~
150000	~~$0.0455~~	~~$6 820.50~~

Current price of LQM21FN4R7M70L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
