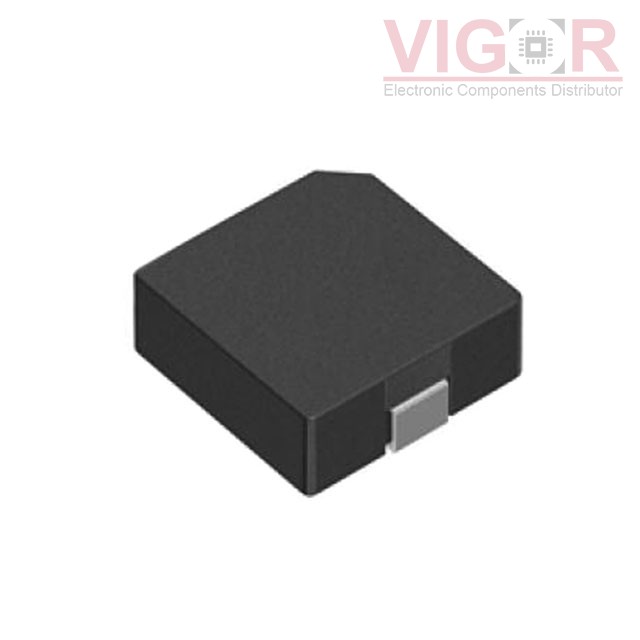

SPM10040XT-R47M

Part No :: SPM10040XT-R47M

Manufacturer: TDK Corporation

Description: FIXED IND 470NH 22A 1.32 MOHM

Catalog: Fixed Inductors

DataSheet: SPM10040XT-R47M PDF

Availability: 1367 pieces

Unit Price: ~~$1.40000~~

Current price of SPM10040XT-R47M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SPM10040XT-R47M Specifications

Type	Description
Series:	SPM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	22 A
Current - Saturation (Isat):	25A
Shielding:	Shielded
DC Resistance (DCR):	1.32mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	-
Size / Dimension:	0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
