SRN3015-2R2M

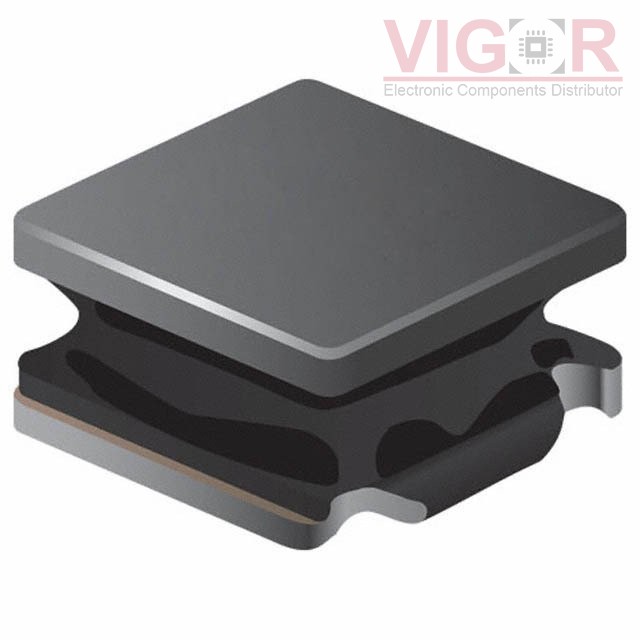

Image is for reference,
please contact us to get the real picture

Part No :: SRN3015-2R2M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 2.2UH 1.8A 72 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRN3015-2R2M PDF

Availability: 1879 pieces

Unit Price: ~~$0.46000~~

Current price of SRN3015-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRN3015-2R2M Specifications

Type	Description
Series:	SRN3015
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.8 A
Current - Saturation (Isat):	1.65A
Shielding:	Semi-Shielded
DC Resistance (DCR):	72mOhm Max
Q @ Freq:	10 @ 7.96MHz
Frequency - Self Resonant:	90MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.059" (1.50mm)
