744773122

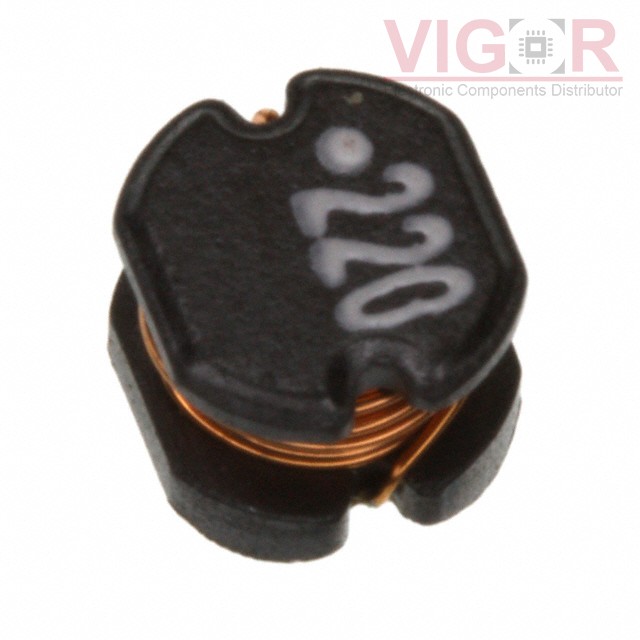

Image is for reference,
please contact us to get the real picture

Part No :: 744773122

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 1A 370 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 744773122 PDF

Availability: 1062 pieces

Unit Price: ~~$1.69000~~

Current price of 744773122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744773122 Specifications

Type	Description
Series:	WE-PD2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.22A
Shielding:	Unshielded
DC Resistance (DCR):	370mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max):	0.138" (3.50mm)
