B82559A6682A019

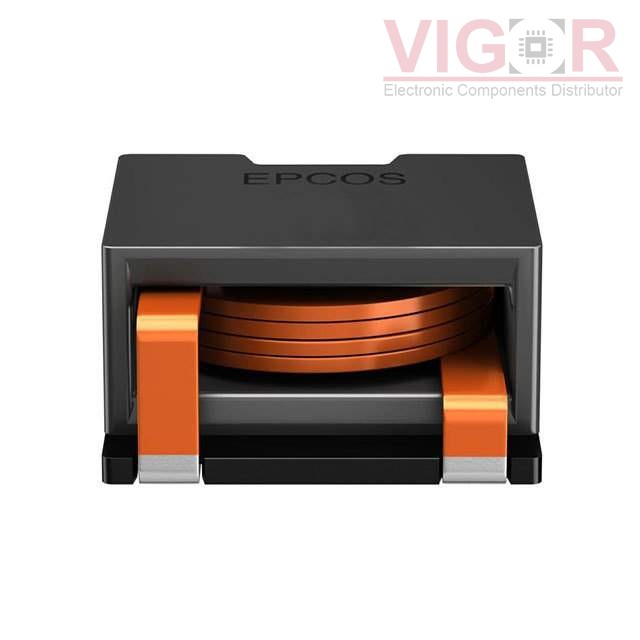

Image is for reference,
please contact us to get the real picture

Part No :: B82559A6682A019

Manufacturer: TDK EPCOS

Description: FIXED IND 6.8UH 8.25 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B82559A6682A019 PDF

Availability: 168 pieces

Unit Price: ~~$5.44000~~

Current price of B82559A6682A019 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82559A6682A019 Specifications

Type	Description
Series:	ERU19 - Flat Wire Inductor
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	6.8 µH
Tolerance:	±10%
Current Rating (Amps):	-
Current - Saturation (Isat):	16.4A
Shielding:	Shielded
DC Resistance (DCR):	8.25mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	2MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 3 Lead
Supplier Device Package:	-
Size / Dimension:	0.807" L x 0.807" W (20.50mm x 20.50mm)
Height - Seated (Max):	0.358" (9.10mm)
