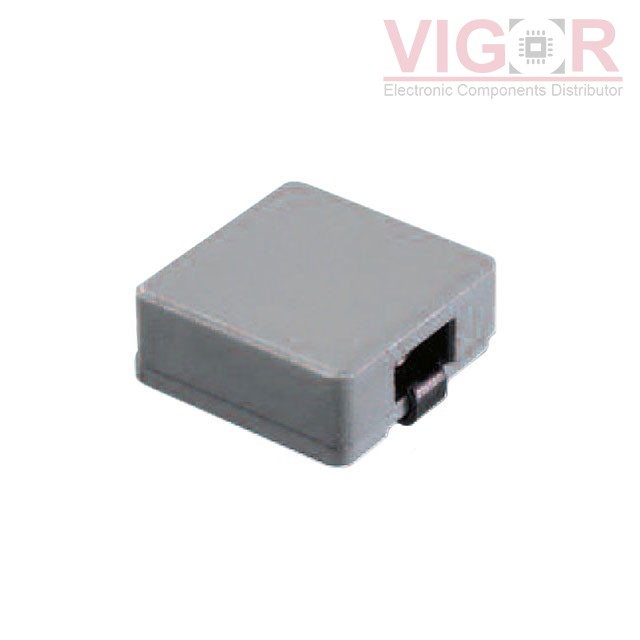

AX02-302R2

Part No :: AX02-302R2

Manufacturer: Triad Magnetics

Description: FIXED IND 2.2UH 12A 5.1 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AX02-302R2 PDF

Availability: 0 pieces

Current price of AX02-302R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AX02-302R2 Specifications

Type	Description
Series:	AX02
Package:	Box
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	12 A
Current - Saturation (Isat):	24A
Shielding:	Shielded
DC Resistance (DCR):	5.1mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	SMD
Size / Dimension:	0.524" L x 0.591" W (13.30mm x 15.00mm)
Height - Seated (Max):	0.256" (6.50mm)
