WCL3225-470-R

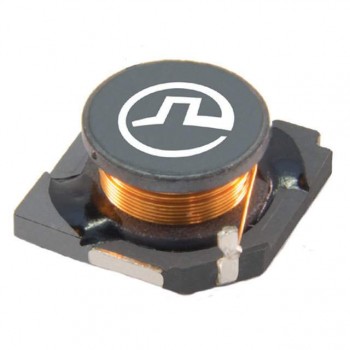

Image is for reference,
please contact us to get the real picture

Part No :: WCL3225-470-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 47UH 140MA 5.2 OHM SMD

Catalog: Fixed Inductors

DataSheet: WCL3225-470-R PDF

Availability: 3942 pieces

Unit Price: ~~$0.28000~~

Current price of WCL3225-470-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WCL3225-470-R Specifications

Type	Description
Series:	WCL3225
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	47 µH
Tolerance:	±5%
Current Rating (Amps):	140 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	5.2Ohm Max
Q @ Freq:	10 @ 2.52MHz
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.138" L x 0.114" W (3.50mm x 2.90mm)
Height - Seated (Max):	0.089" (2.25mm)
