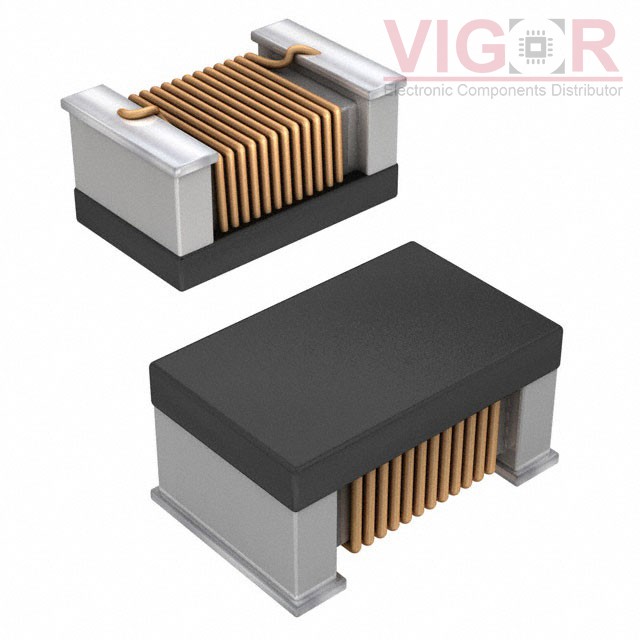

IMC0805ER5R6J01

Part No :: IMC0805ER5R6J01

Manufacturer: Vishay / Dale

VIGOR # :: 1644121

Description: FIXED IND 5.6UH 160MA 3 OHM SMD

Catalog: Fixed Inductors

DataSheet: IMC0805ER5R6J01 PDF

Country of origin: -

Date code: -

IMC0805ER5R6J01 Specifications

Type	Description
Series:	IMC-0805-01
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	5.6 µH
Tolerance:	±5%
Current Rating (Amps):	160 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3Ohm Max
Q @ Freq:	15 @ 7.96MHz
Frequency - Self Resonant:	45MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.055" (1.40mm)
