L-14W15NGV4E

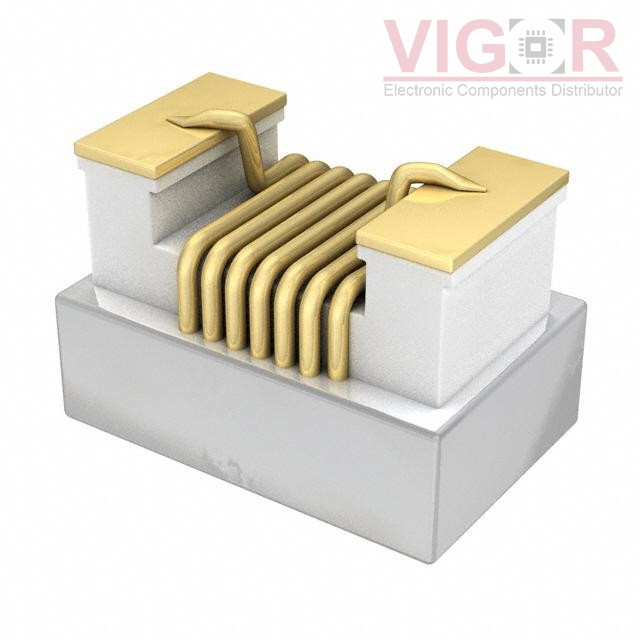

Image is for reference,
please contact us to get the real picture

Part No :: L-14W15NGV4E

Manufacturer: Johanson Technology

Description: FIXED IND 15NH 700MA 170 MOHM

Catalog: Fixed Inductors

DataSheet: L-14W15NGV4E PDF

Availability: 0 pieces

Unit Price: ~~$0.09010~~

Current price of L-14W15NGV4E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L-14W15NGV4E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Ceramic Core, Wirewound
Material - Core:	Ceramic
Inductance:	15 nH
Tolerance:	±2%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	170mOhm Max
Q @ Freq:	35 @ 250MHz
Frequency - Self Resonant:	3.1GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.95mm)

Please confirm the specifications of the products when ordering.
