B82144F1105J000

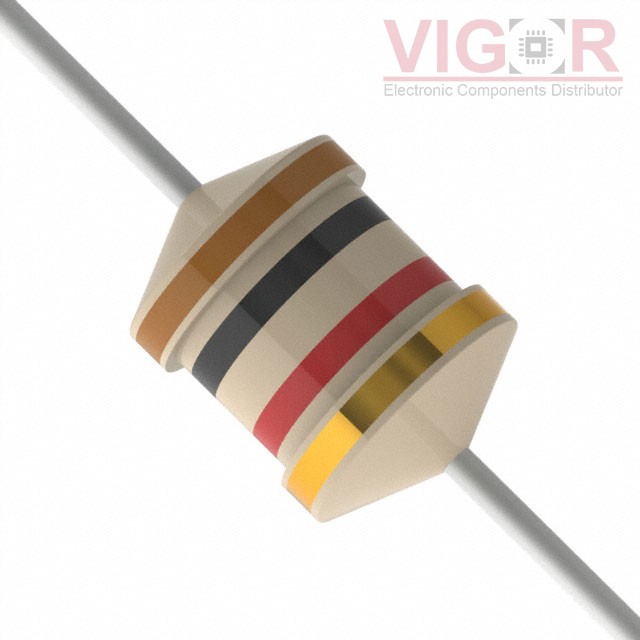

Image is for reference,
please contact us to get the real picture

Part No :: B82144F1105J000

Manufacturer: TDK EPCOS

Description: FIXED IND 1MH 280MA 4.2 OHM TH

Catalog: Fixed Inductors

DataSheet: B82144F1105J000 PDF

Availability: 3848 pieces

Unit Price: ~~$0.68000~~

Current price of B82144F1105J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82144F1105J000 Specifications

Type	Description
Series:	LBC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 mH
Tolerance:	±5%
Current Rating (Amps):	280 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	4.2Ohm Max
Q @ Freq:	60 @ 252kHz
Frequency - Self Resonant:	2.2MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
