SRP5020TA-100M

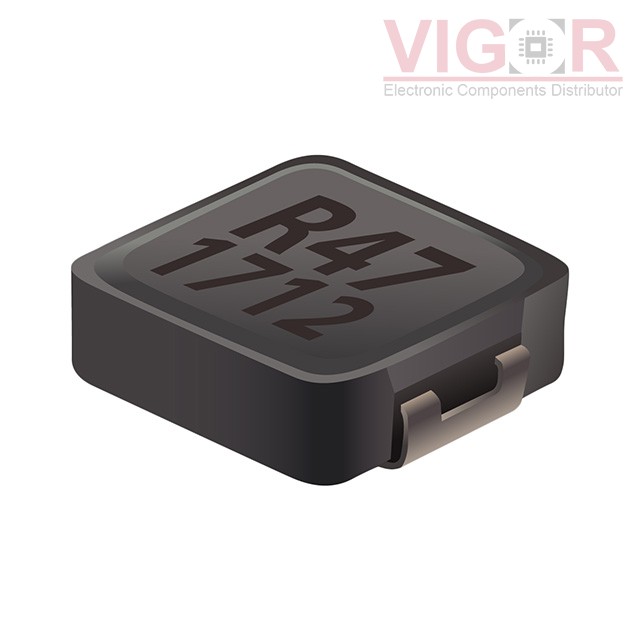

Image is for reference,
please contact us to get the real picture

Part No :: SRP5020TA-100M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 10UH 2.3A 199 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP5020TA-100M PDF

Availability: 170 pieces

Unit Price: ~~$1.36000~~

Current price of SRP5020TA-100M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP5020TA-100M Specifications

Type	Description
Series:	SRP5020TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	2.3 A
Current - Saturation (Isat):	3.4A
Shielding:	Shielded
DC Resistance (DCR):	199mOhm Max
Q @ Freq:	22 @ 100kHz
Frequency - Self Resonant:	18MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max):	0.079" (2.00mm)
