SP1812R-822H

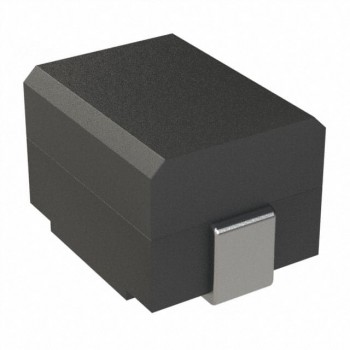

Image is for reference,
please contact us to get the real picture

Part No :: SP1812R-822H

Manufacturer: API Delevan

Description: FIXED IND 8.2UH 842MA 280 MOHM

Catalog: Fixed Inductors

DataSheet: SP1812R-822H PDF

Availability: 0 pieces

Unit Price: ~~$3.11460~~

Current price of SP1812R-822H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP1812R-822H Specifications

Type	Description
Series:	SP1812R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	8.2 µH
Tolerance:	±3%
Current Rating (Amps):	842 mA
Current - Saturation (Isat):	724mA
Shielding:	Shielded
DC Resistance (DCR):	280mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max):	0.134" (3.40mm)
