MLG0603Q7N5J

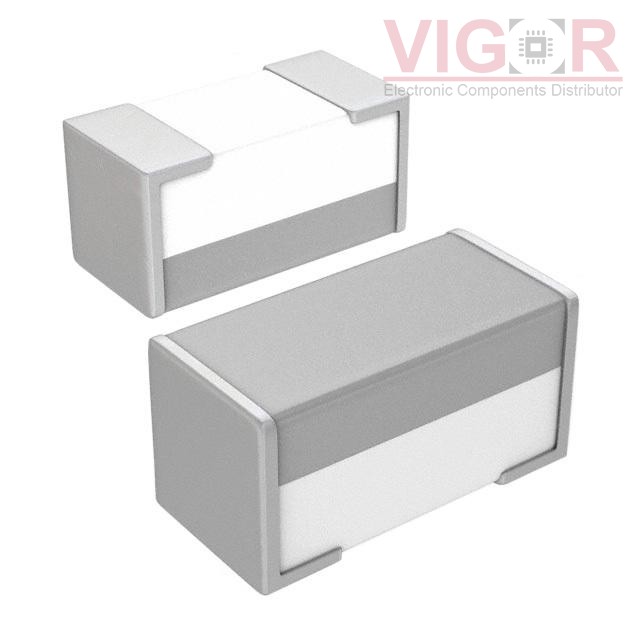

Image is for reference,
please contact us to get the real picture

Part No :: MLG0603Q7N5J

Manufacturer: TDK Corporation

Description: FIXED IND 7.5NH 220MA 700 MOHM

Catalog: Fixed Inductors

DataSheet: MLG0603Q7N5J PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MLG0603Q7N5J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MLG0603Q7N5J Specifications

Type	Description
Series:	MLG-Q
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Non-Magnetic
Inductance:	7.5 nH
Tolerance:	±5%
Current Rating (Amps):	220 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	700mOhm Max
Q @ Freq:	5 @ 100MHz
Frequency - Self Resonant:	3.8GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201 (0603 Metric)
Size / Dimension:	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max):	0.013" (0.33mm)
