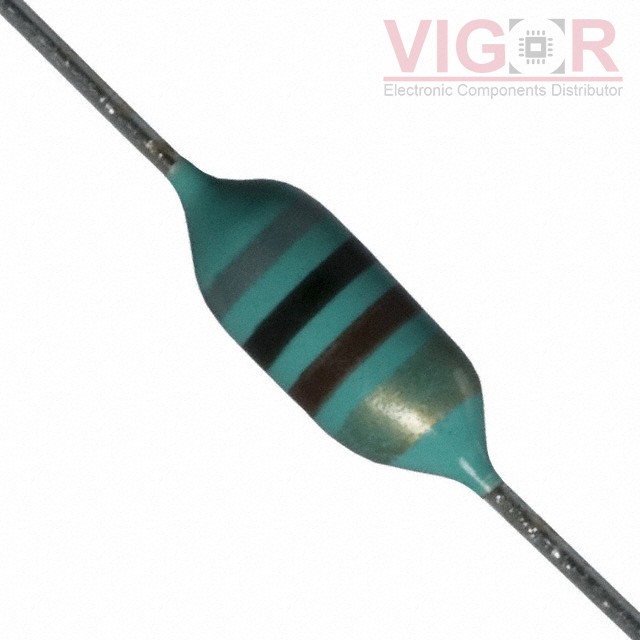

8230-94

Part No :: 8230-94

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4435607

Description: FIXED IND 100NH 1.1A 70 MOHM TH

Catalog: Fixed Inductors

DataSheet: 8230-94 PDF

Country of origin: -

Date code: -

8230-94 Specifications

Type	Description
Series:	8230
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Phenolic
Inductance:	100 nH
Tolerance:	±10%
Current Rating (Amps):	1.1 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	40 @ 25MHz
Frequency - Self Resonant:	690MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Height - Seated (Max):	-
