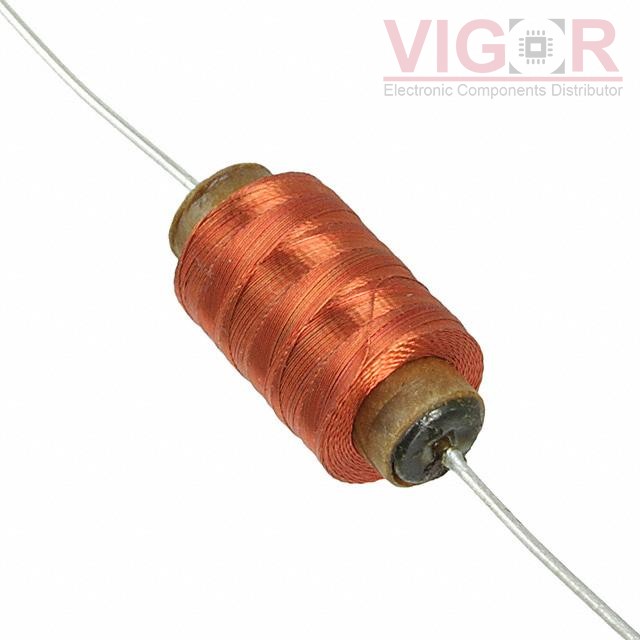

70F121AF-RC

Part No :: 70F121AF-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4435671

Description: FIXED IND 120MH 48MA 288 OHM TH

Catalog: Fixed Inductors

DataSheet: 70F121AF-RC PDF

Country of origin: -

Date code: -

70F121AF-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	120 mH
Tolerance:	±5%
Current Rating (Amps):	48 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	288Ohm Max
Q @ Freq:	46 @ 25kHz
Frequency - Self Resonant:	84kHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	25 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.480" Dia x 0.880" L (12.20mm x 22.35mm)
Height - Seated (Max):	-
