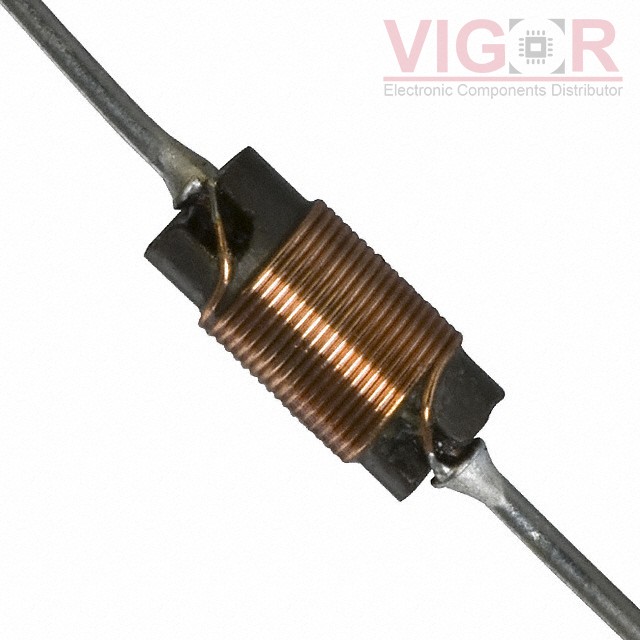

70F226AI

Part No :: 70F226AI

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4436041

Description: FIXED IND 2.2UH 1.132A 156MOHM

Catalog: Fixed Inductors

DataSheet: 70F226AI PDF

Country of origin: -

Date code: -

70F226AI Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	2.2 µH
Tolerance:	±10%
Current Rating (Amps):	1.132 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	156mOhm Max
Q @ Freq:	43 @ 7.9MHz
Frequency - Self Resonant:	87MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.160" Dia x 0.250" L (4.06mm x 6.35mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 01 - May 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 70F226AI is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

IMS05ST560K

FIXED IND 56UH 190MA 2.23 OHM TH

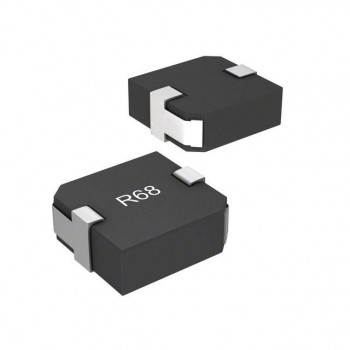

SRP1040-R39M

FIXED IND 390NH 24A 1.4 MOHM SMD

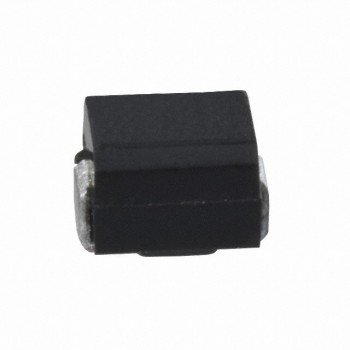

PM1210-1R8J
