PM3316-1R0M

PM3316-1R0M

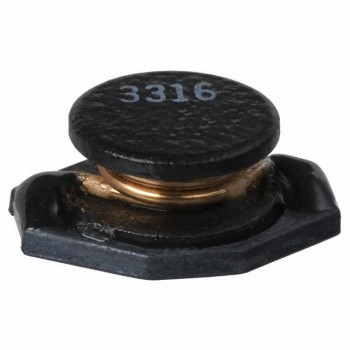

Image is for reference,
please contact us to get the real picture

Part No :

PM3316-1R0M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 1UH 6.8A 9 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Nov 07 - Nov 11 2025
DataSheet
PM3316-1R0M PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PM3316-1R0M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3316-1R0M Specifications
Type Description
Series:PM3316
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:1 µH
Tolerance:±20%
Current Rating (Amps):6.8 A
Current - Saturation (Isat):9A
Shielding:Unshielded
DC Resistance (DCR):9mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):0.209" (5.30mm)
