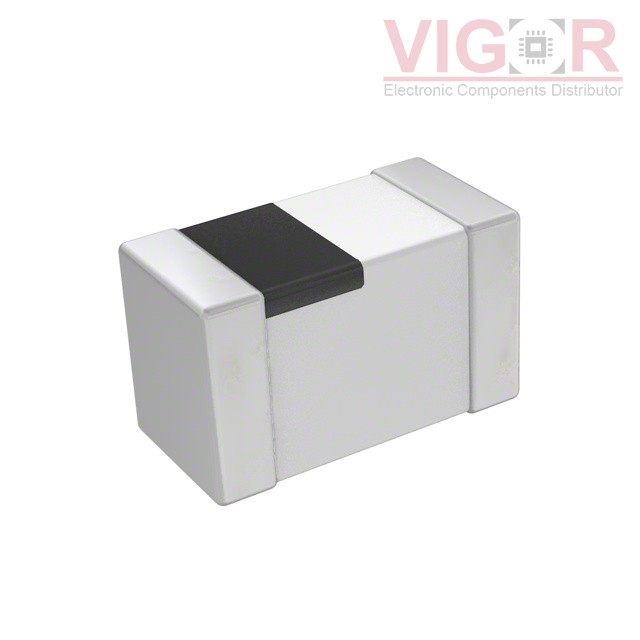

MLG1608B56NJTD25

Part No :: MLG1608B56NJTD25

Manufacturer: TDK Corporation

VIGOR # :: 4436160

Description: FIXED IND 56NH 400MA 700 MOHM

Catalog: Fixed Inductors

DataSheet: MLG1608B56NJTD25 PDF

Country of origin: -

Date code: -

MLG1608B56NJTD25 Specifications

Type	Description
Series:	MLG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ceramic, Non-Magnetic
Inductance:	56 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	700mOhm Max
Q @ Freq:	14 @ 100MHz
Frequency - Self Resonant:	1.2GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.95mm)
