ELJ-PE22NKF

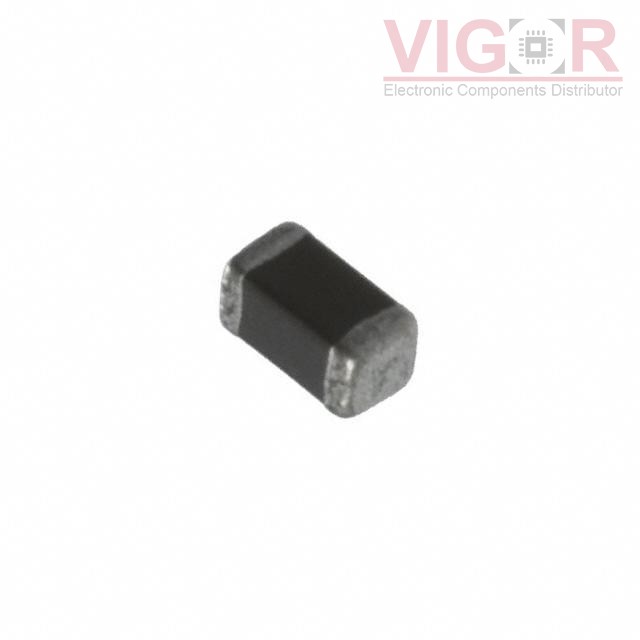

Image is for reference,
please contact us to get the real picture

Part No :: ELJ-PE22NKF

Manufacturer: Panasonic

Description: FIXED IND 22NH 700MA 150 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Nov 11 - Nov 15 2025

DataSheet: ELJ-PE22NKF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELJ-PE22NKF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELJ-PE22NKF Specifications

Type	Description
Series:	PE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	22 nH
Tolerance:	±10%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	150mOhm Max
Q @ Freq:	9 @ 100MHz
Frequency - Self Resonant:	1.8GHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.031" (0.80mm)

Please confirm the specifications of the products when ordering.
