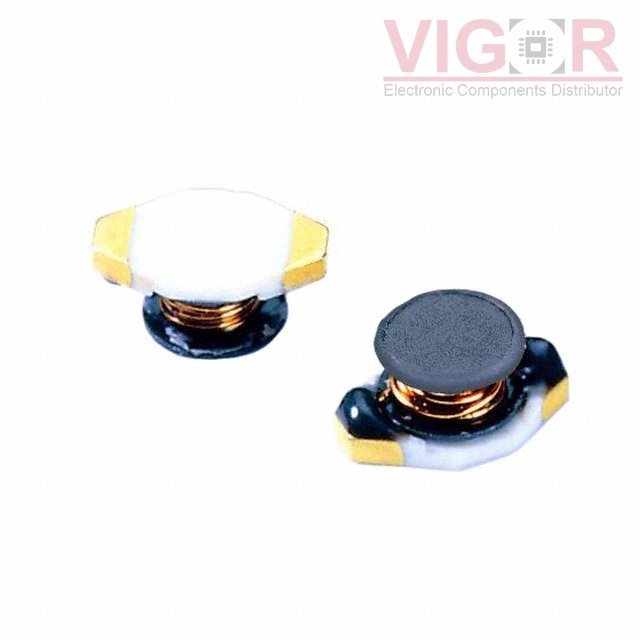

SC1608F-220

Part No :: SC1608F-220

Manufacturer: Signal Transformer

VIGOR # :: 4436285

Description: FIXED IND 22UH 860MA 370 MOHM

Catalog: Fixed Inductors

DataSheet: SC1608F-220 PDF

Country of origin: -

Date code: -

SC1608F-220 Specifications

Type	Description
Series:	SC1608F
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	860 mA
Current - Saturation (Isat):	700mA
Shielding:	Unshielded
DC Resistance (DCR):	370mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):	0.115" (2.92mm)
