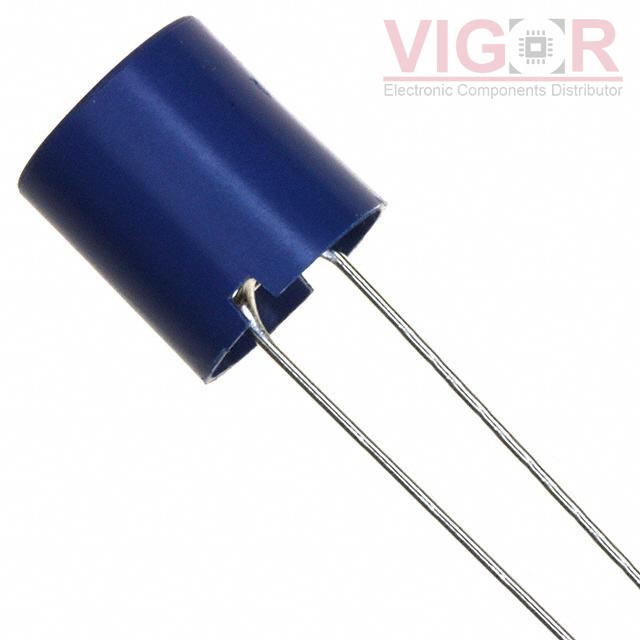

TSL1112RA-101K1R4-PF

Part No :: TSL1112RA-101K1R4-PF

Manufacturer: TDK Corporation

VIGOR # :: 4436390

Description: FIXED IND 100UH 1.4A 160 MOHM TH

Catalog: Fixed Inductors

DataSheet: TSL1112RA-101K1R4-PF PDF

Country of origin: -

Date code: -

TSL1112RA-101K1R4-PF Specifications

Type	Description
Series:	TSL
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	100 µH
Tolerance:	±10%
Current Rating (Amps):	1.4 A
Current - Saturation (Isat):	1.6A
Shielding:	Unshielded
DC Resistance (DCR):	160mOhm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	3.8MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.441" Dia (11.20mm)
Height - Seated (Max):	0.492" (12.50mm)
