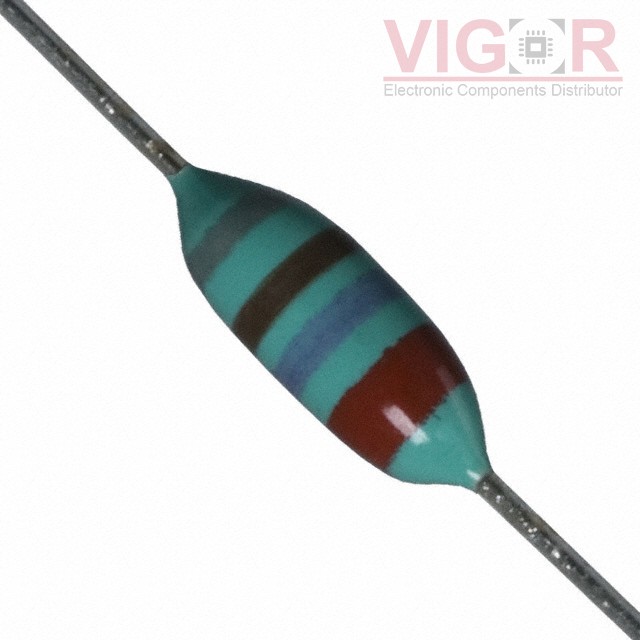

8230-78

Part No :: 8230-78

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4436441

Description: FIXED IND 270UH 65MA 25 OHM TH

Catalog: Fixed Inductors

DataSheet: 8230-78 PDF

Country of origin: -

Date code: -

8230-78 Specifications

Type	Description
Series:	8230
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	270 µH
Tolerance:	±10%
Current Rating (Amps):	65 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	25Ohm Max
Q @ Freq:	30 @ 790kHz
Frequency - Self Resonant:	8MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Height - Seated (Max):	-
