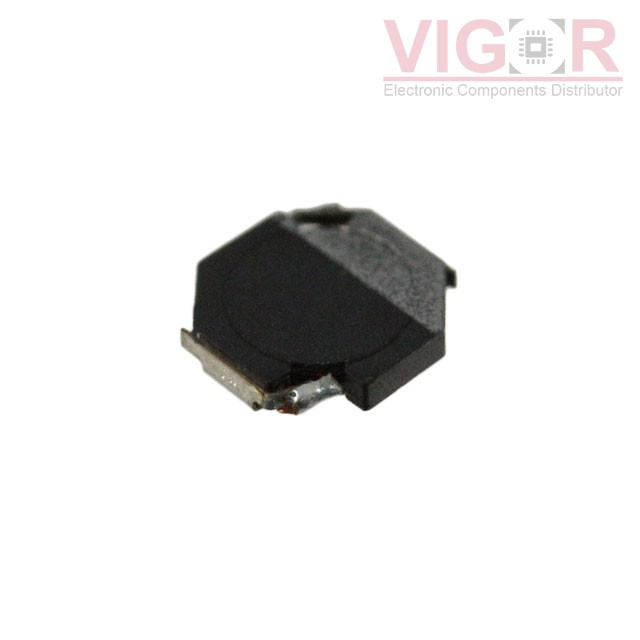

VLF5012AT-2R2M1R5

Part No :: VLF5012AT-2R2M1R5

Manufacturer: TDK Corporation

VIGOR # :: 4437465

Description: FIXED IND 2.2UH 1.5A 110 MOHM

Catalog: Fixed Inductors

DataSheet: VLF5012AT-2R2M1R5 PDF

Country of origin: -

Date code: -

VLF5012AT-2R2M1R5 Specifications

Type	Description
Series:	VLF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.5 A
Current - Saturation (Isat):	2.3A
Shielding:	Shielded
DC Resistance (DCR):	110mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.185" L x 0.177" W (4.70mm x 4.50mm)
Height - Seated (Max):	0.047" (1.20mm)
