ELJ-PA680KF2

Part No :: ELJ-PA680KF2

Manufacturer: Panasonic

VIGOR # :: 4437653

Description: FIXED IND 68UH 190MA 3.2 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-PA680KF2 PDF

Country of origin: -

Date code: -

ELJ-PA680KF2 Specifications

Type	Description
Series:	PA2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	68 µH
Tolerance:	±10%
Current Rating (Amps):	190 mA
Current - Saturation (Isat):	160mA
Shielding:	Unshielded
DC Resistance (DCR):	3.2Ohm
Q @ Freq:	-
Frequency - Self Resonant:	7.5MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 18 - Oct 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of ELJ-PA680KF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

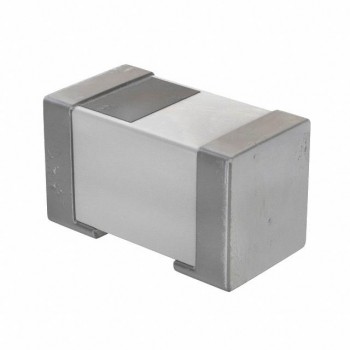

MHQ0402P27NJT000

FIXED IND 27NH 130MA 3 OHM SMD

ELL-6GM220M

FIXED IND 22UH 620MA 320 MOHM

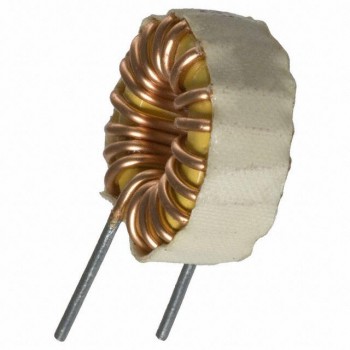

2100LL-5R6-H-RC
