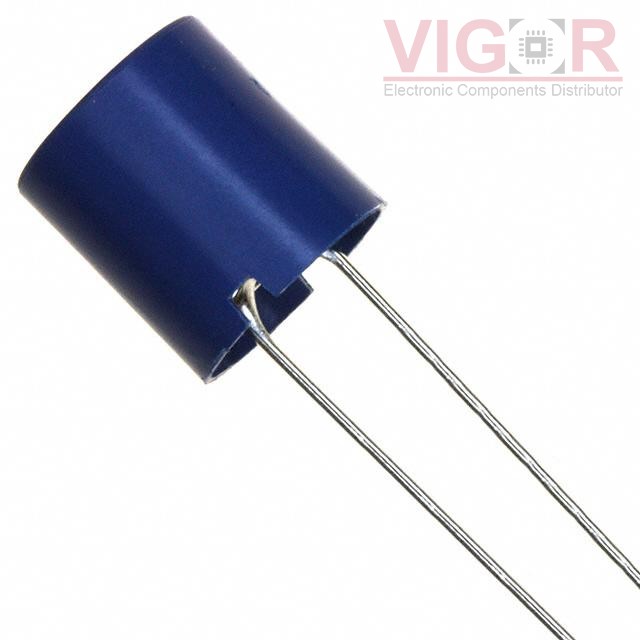

TSL1112RA-1R0M7R7-PF

Part No :: TSL1112RA-1R0M7R7-PF

Manufacturer: TDK Corporation

VIGOR # :: 4437890

Description: FIXED IND 1UH 7.7A 58 MOHM TH

Catalog: Fixed Inductors

DataSheet: TSL1112RA-1R0M7R7-PF PDF

Country of origin: -

Date code: -

TSL1112RA-1R0M7R7-PF Specifications

Type	Description
Series:	TSL
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	7.7 A
Current - Saturation (Isat):	14A
Shielding:	Unshielded
DC Resistance (DCR):	58mOhm Max
Q @ Freq:	15 @ 7.96MHz
Frequency - Self Resonant:	144MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.441" Dia (11.20mm)
Height - Seated (Max):	0.492" (12.50mm)
