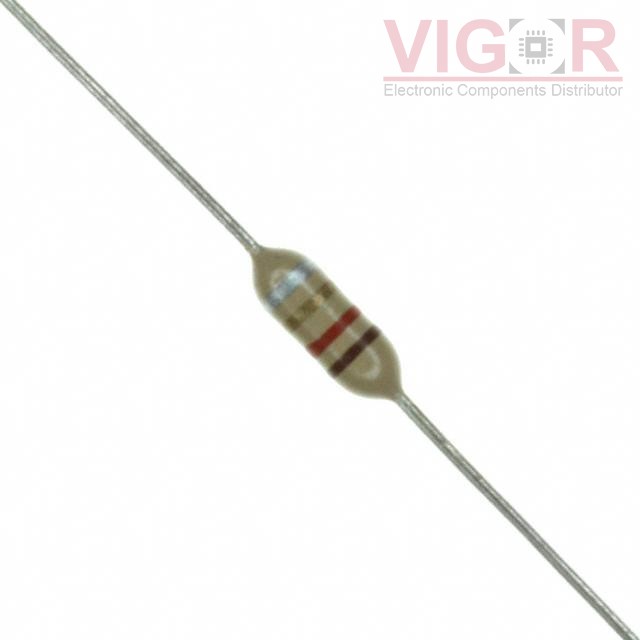

8230-22

Part No :: 8230-22

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4438162

Description: FIXED IND 1.2UH 825MA 180MOHM TH

Catalog: Fixed Inductors

DataSheet: 8230-22 PDF

Country of origin: -

Date code: -

8230-22 Specifications

Type	Description
Series:	8230
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1.2 µH
Tolerance:	±10%
Current Rating (Amps):	825 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	180mOhm Max
Q @ Freq:	25 @ 7.9MHz
Frequency - Self Resonant:	150MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Height - Seated (Max):	-
