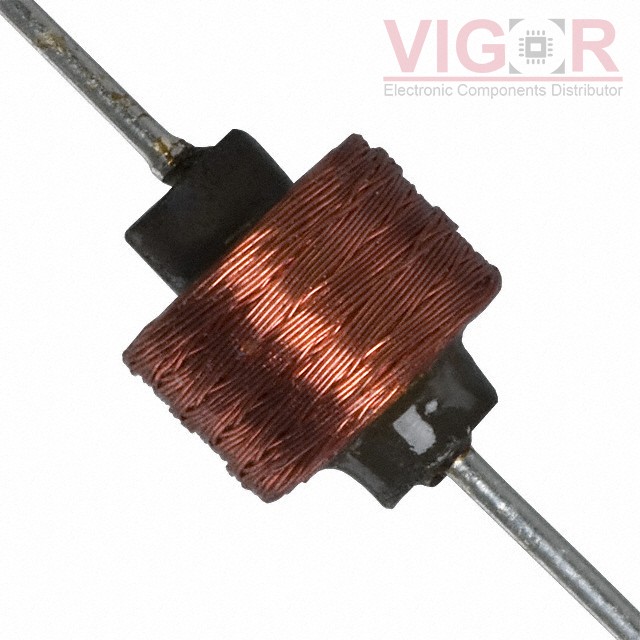

70F223AI-RC

Part No :: 70F223AI-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4438177

Description: FIXED IND 2.2MH 57MA 45.6 OHM TH

Catalog: Fixed Inductors

DataSheet: 70F223AI-RC PDF

Country of origin: -

Date code: -

70F223AI-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	2.2 mH
Tolerance:	±5%
Current Rating (Amps):	57 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	45.6Ohm Max
Q @ Freq:	40 @ 250kHz
Frequency - Self Resonant:	960kHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	250 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.240" Dia x 0.250" L (6.10mm x 6.35mm)
Height - Seated (Max):	-
