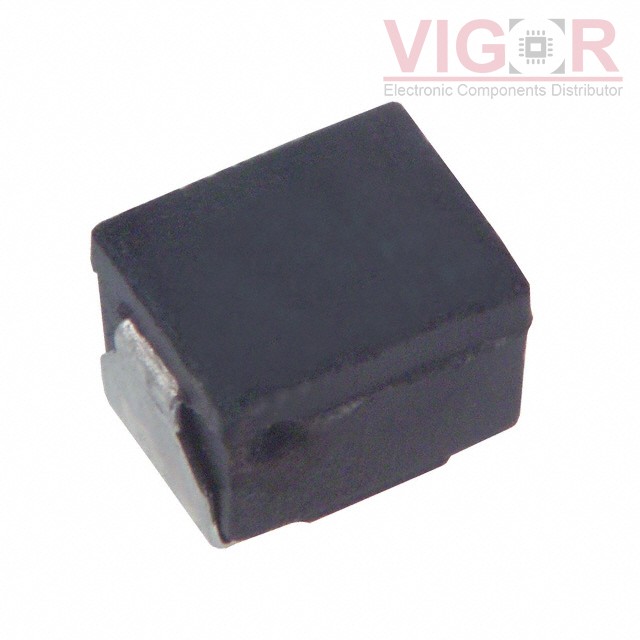

ELJ-FA5R6JF

Part No :: ELJ-FA5R6JF

Manufacturer: Panasonic

VIGOR # :: 4438204

Description: FIXED IND 5.6UH 160MA 1.6 OHM

Catalog: Fixed Inductors

DataSheet: ELJ-FA5R6JF PDF

Country of origin: -

Date code: -

ELJ-FA5R6JF Specifications

Type	Description
Series:	FA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	5.6 µH
Tolerance:	±5%
Current Rating (Amps):	160 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	30 @ 7.96MHz
Frequency - Self Resonant:	50MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)
