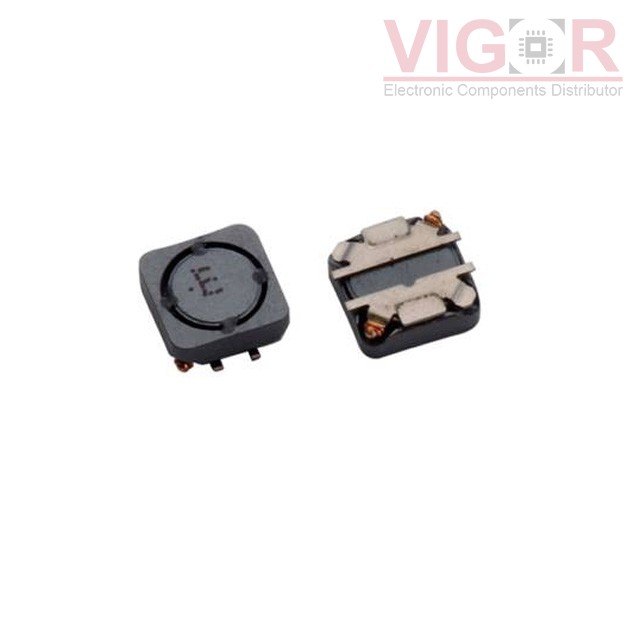

ASPI-0316S-2R2N-T3

Part No :: ASPI-0316S-2R2N-T3

Manufacturer: Abracon

VIGOR # :: 4438226

Description: FIXED IND 2.2UH 1.3A 111 MOHM

Catalog: Fixed Inductors

DataSheet: ASPI-0316S-2R2N-T3 PDF

Country of origin: -

Date code: -

ASPI-0316S-2R2N-T3 Specifications

Type	Description
Series:	ASPI-0316S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±30%
Current Rating (Amps):	1.3 A
Current - Saturation (Isat):	1.2A
Shielding:	Shielded
DC Resistance (DCR):	111mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-25°C ~ 100°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max):	0.059" (1.50mm)
