ELJ-EA1R5MF

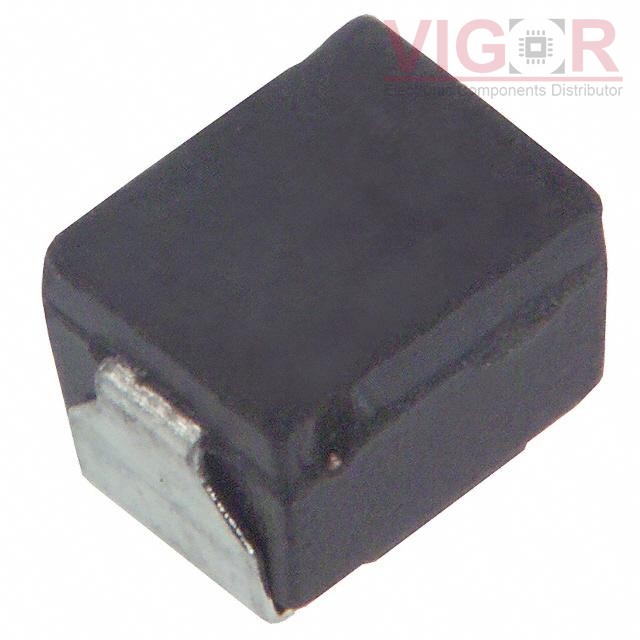

Image is for reference,
please contact us to get the real picture

Part No :: ELJ-EA1R5MF

Manufacturer: Panasonic

Description: FIXED IND 1.5UH 390MA 80 MOHM

Catalog: Fixed Inductors

DataSheet: ELJ-EA1R5MF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELJ-EA1R5MF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELJ-EA1R5MF Specifications

Type	Description
Series:	EA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	1.5 µH
Tolerance:	±20%
Current Rating (Amps):	390 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	80mOhm Max
Q @ Freq:	7 @ 7.96MHz
Frequency - Self Resonant:	80MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)
