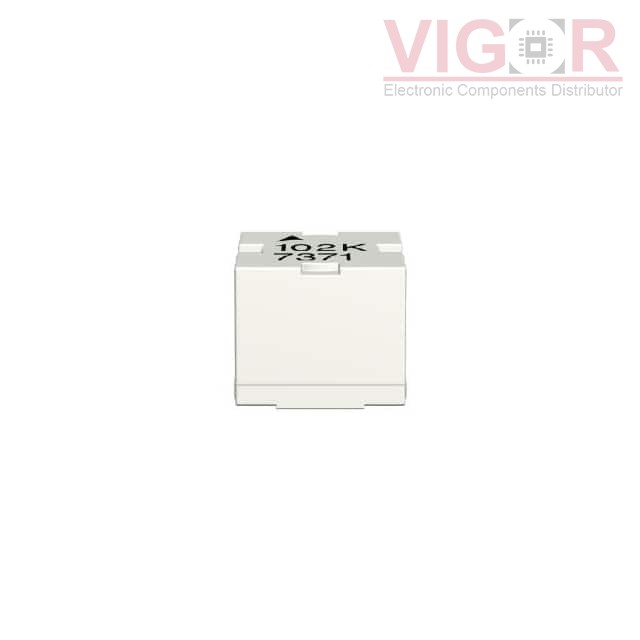

B82442A1305A500

Part No :: B82442A1305A500

Manufacturer: TDK EPCOS

VIGOR # :: 4438755

Description: FIXED IND 3.05MH 45MA 45 OHM SMD

Catalog: Fixed Inductors

DataSheet: B82442A1305A500 PDF

Country of origin: -

Date code: -

B82442A1305A500 Specifications

Type	Description
Series:	SIMID
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.05 mH
Tolerance:	±3%
Current Rating (Amps):	45 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	45Ohm Max
Q @ Freq:	8 @ 16kHz
Frequency - Self Resonant:	900kHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	16 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	-
Size / Dimension:	0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max):	0.209" (5.30mm)
