HCP1104-R90-R

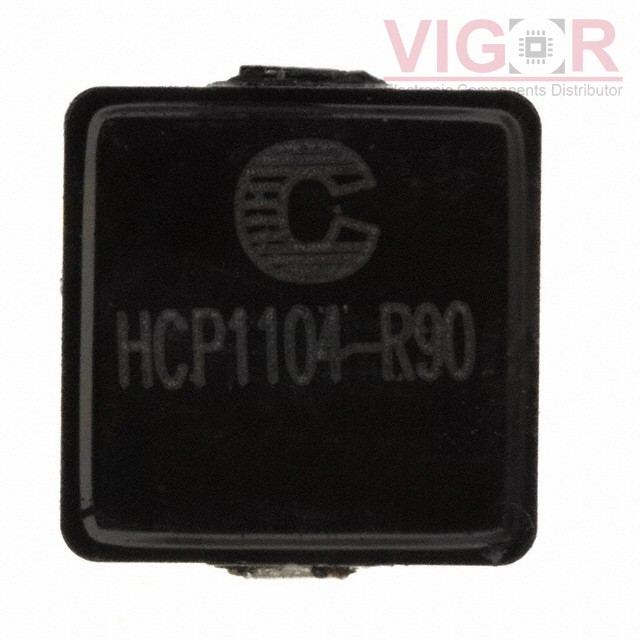

Image is for reference,
please contact us to get the real picture

Part No :: HCP1104-R90-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 900NH 22A 2.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: HCP1104-R90-R PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HCP1104-R90-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCP1104-R90-R Specifications

Type	Description
Series:	HCP1104
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	900 nH
Tolerance:	±20%
Current Rating (Amps):	22 A
Current - Saturation (Isat):	25A
Shielding:	Unshielded
DC Resistance (DCR):	2.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
