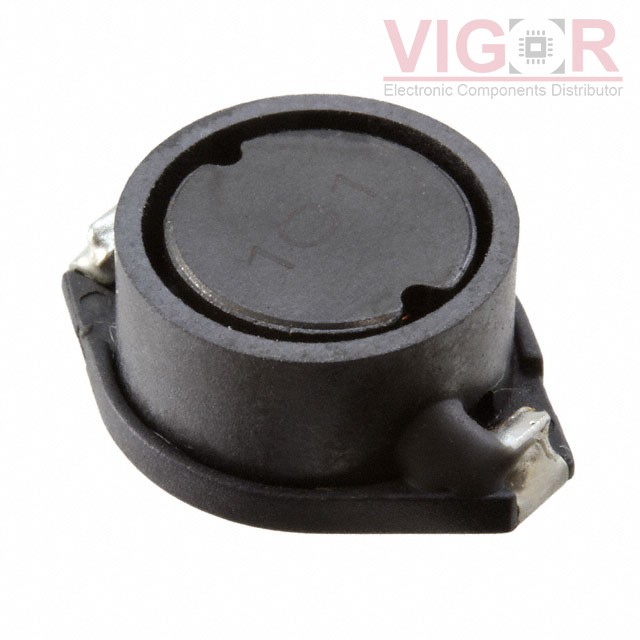

PM5022S-101M

Part No :: PM5022S-101M

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4438925

Description: FIXED IND 100UH 1.7A 207MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM5022S-101M PDF

Country of origin: -

Date code: -

PM5022S-101M Specifications

Type	Description
Series:	PM5022S
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±20%
Current Rating (Amps):	1.7 A
Current - Saturation (Isat):	2.4A
Shielding:	Shielded
DC Resistance (DCR):	207mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.732" L x 0.602" W (18.60mm x 15.30mm)
Height - Seated (Max):	0.299" (7.60mm)
