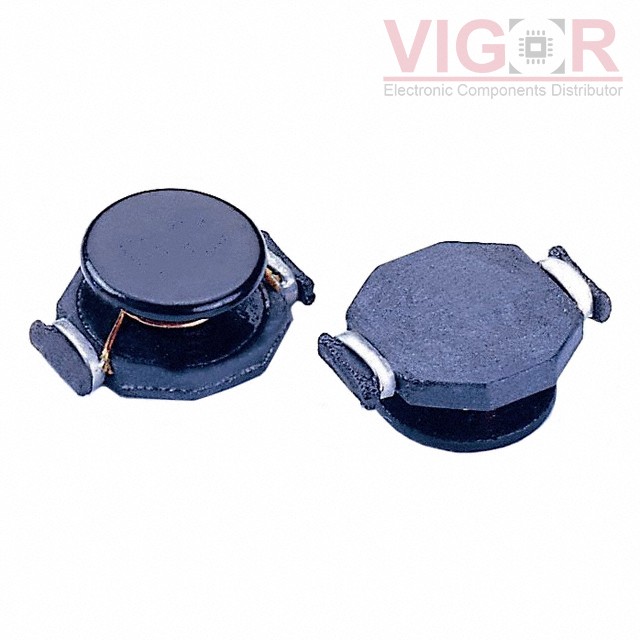

SC3316FH-R56

Part No :: SC3316FH-R56

Manufacturer: Signal Transformer

VIGOR # :: 4438945

Description: FIXED IND 560NH 11.5A 5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC3316FH-R56 PDF

Country of origin: -

Date code: -

SC3316FH-R56 Specifications

Type	Description
Series:	SC3316FH
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	560 nH
Tolerance:	±30%
Current Rating (Amps):	11.5 A
Current - Saturation (Isat):	13A
Shielding:	Unshielded
DC Resistance (DCR):	5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.512" L x 0.394" W (13.00mm x 10.00mm)
Height - Seated (Max):	0.250" (6.35mm)
