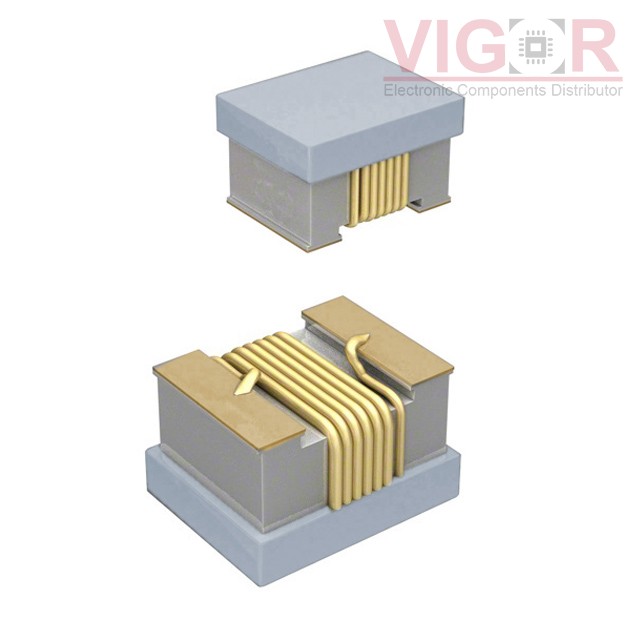

AISM-1812-821K-T

Part No :: AISM-1812-821K-T

Manufacturer: Abracon

VIGOR # :: 4439185

Description: FIXED IND 820UH 30MA 43 OHM SMD

Catalog: Fixed Inductors

DataSheet: AISM-1812-821K-T PDF

Country of origin: -

Date code: -

AISM-1812-821K-T Specifications

Type	Description
Series:	AISM-1812
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	820 µH
Tolerance:	±10%
Current Rating (Amps):	30 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	43Ohm Max
Q @ Freq:	30 @ 796kHz
Frequency - Self Resonant:	2.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)
